[ 10FT / COMPACT / FOLD-OUT ]
10ft Compact Expandable Container House
A small footprint with practical everyday space — the 10ft unfolds from a 2.95 m transport footprint into a 19 m² finished studio.
19
m²
Expanded Area
4
units
Per 40HQ
4–6
hrs
Install Time
10
grade
Wind Rating
[OVERVIEW]

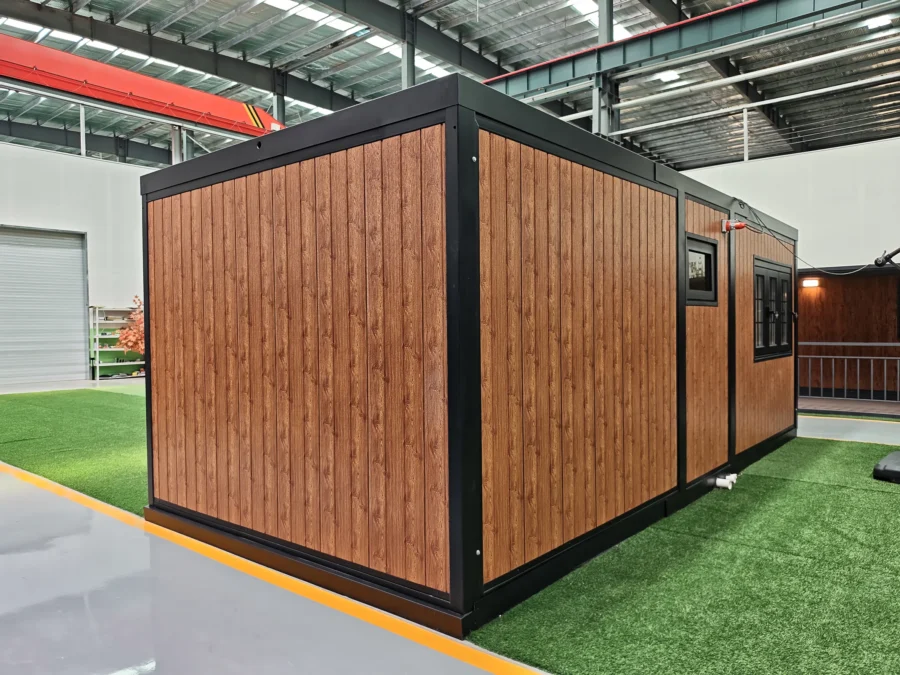

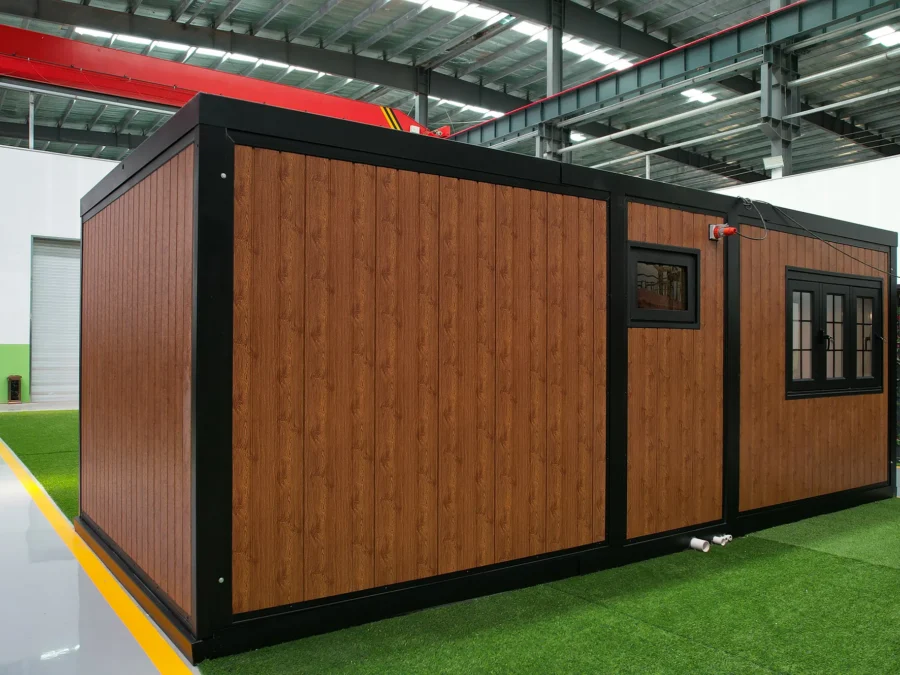

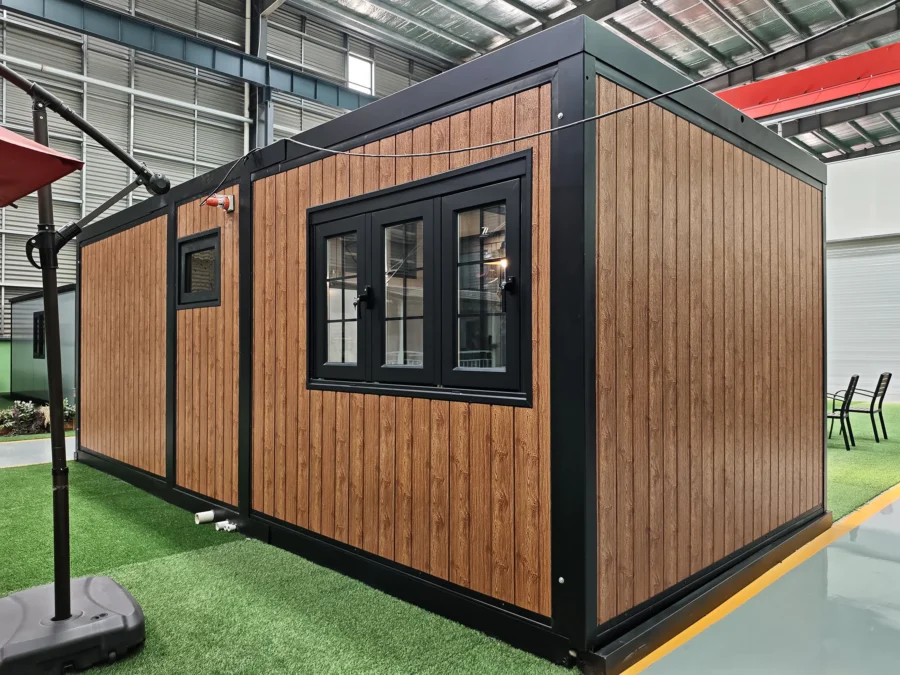

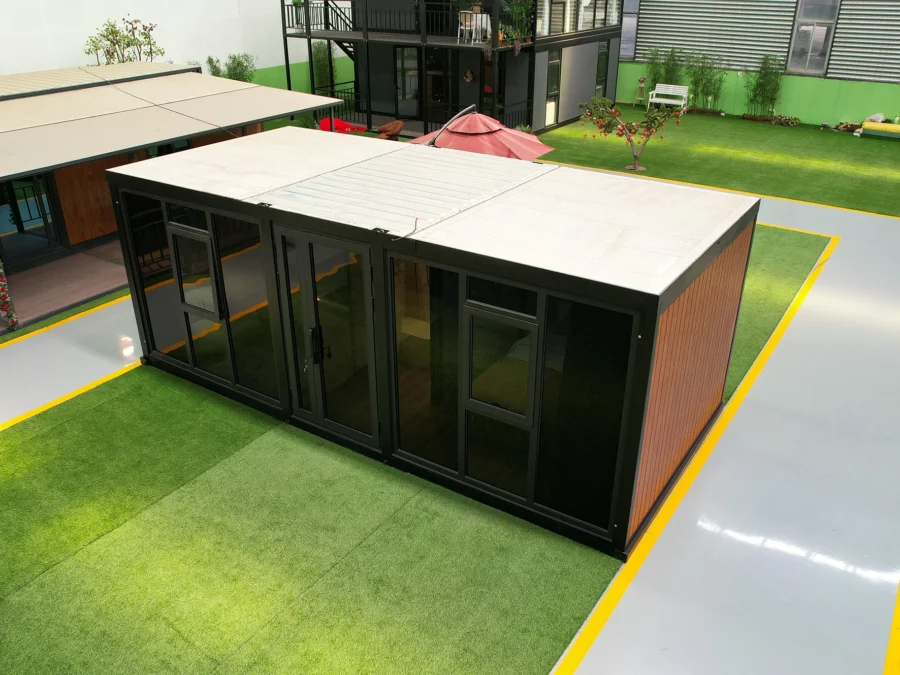

10ft Compact Expandable Container House
The 10ft Expandable Container House is developed for projects that require a compact transport size and a practical room after expansion. Its small footprint makes it suitable for limited sites, individual accommodation, compact offices and other space-efficient applications.
[KEY FEATURES] Why Specifiers
Why Specifiers
Choose It.
- Compact Footprint — Ships and stores in under 7 m² of ground space; fits where standard modules cannot.
- Expandable Interior — Fold-out side sections open the 19 m² finished room in a single coordinated sequence.
- Fast Installation — 4–6 hours with a 3–4 person crew using the factory-fitted expansion mechanism — no crane required.
- Flexible Function — Studio, site office, guard room or reception — layouts and services adapt to the application.
- Efficient Logistics — Four units nest into one 40HQ container, keeping freight cost per unit low.
[LAYOUT OPTIONS] Configure It
Configure It
Your Way.
Every layout ships with the agreed electrical standard, insulation package and interior finish — confirmed in CAD before production.

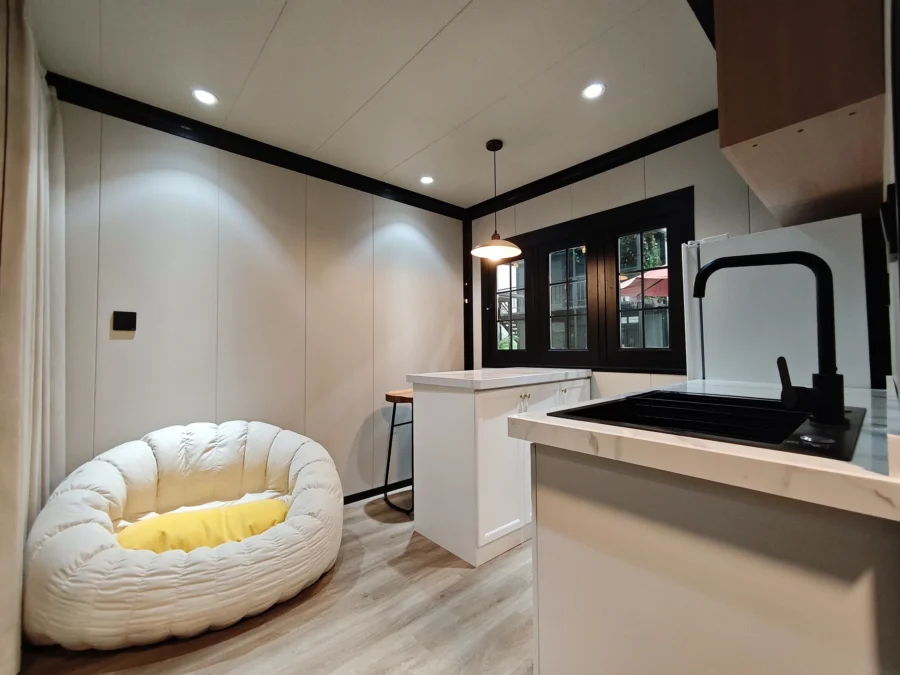

- Compact studio

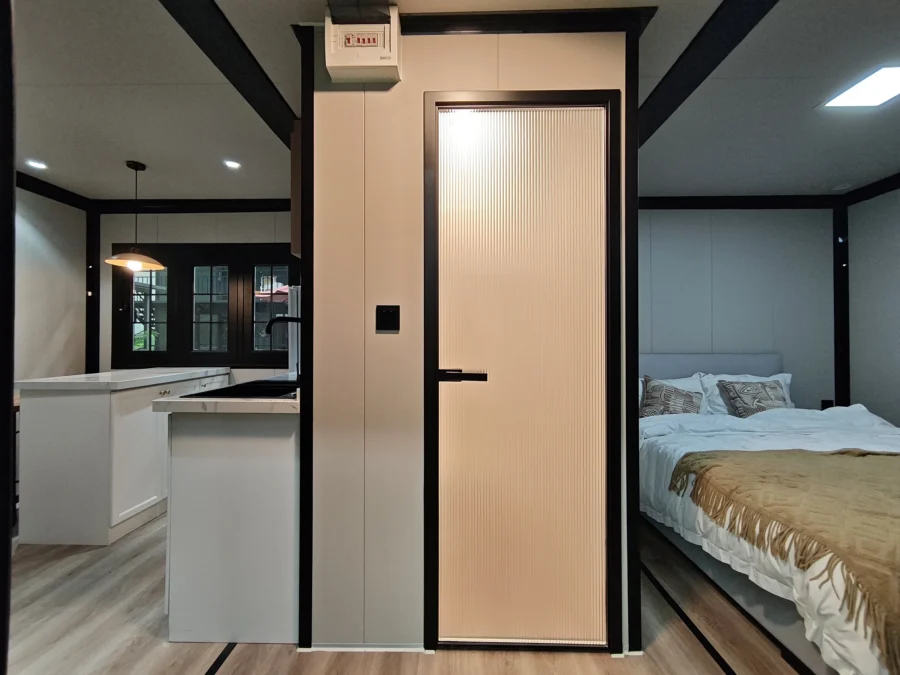

- Single-room accommodation
- Site office
- Guard room or reception
- Customized project layout
[GALLERY]
In Detail.
[TECHNICAL BRIEF]
Specifications.
Dimensions & Weight
- Folded dimensions
- 2950 × 2150 × 2480 mm

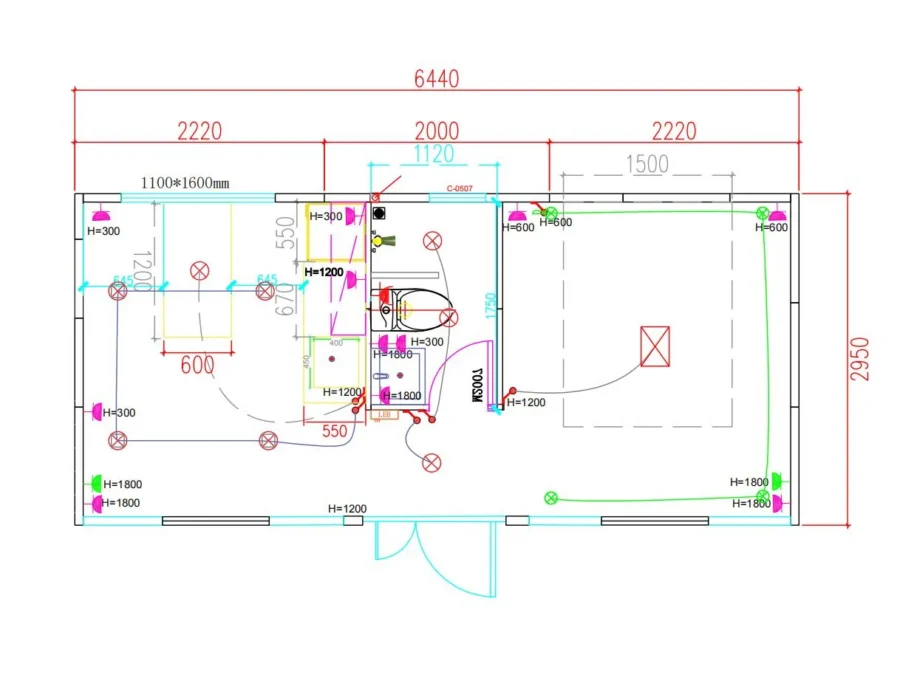

- Expanded dimensions
- 2950 × 6440 × 2480 mm
- Expanded floor area
- 19 m²
- Internal height
- 2200 mm
- Net weight
- 2500 kg
Structure
- Main frame
- Hot-dip galvanized steel, 80×100×2.5 mm square tube
- Wall panels
- 75 mm EPS sandwich, 0.35 mm color steel faces
- Floor system
- 18 mm fire-resistant glass-magnesium board + 2.0 mm PVC
- Roof system

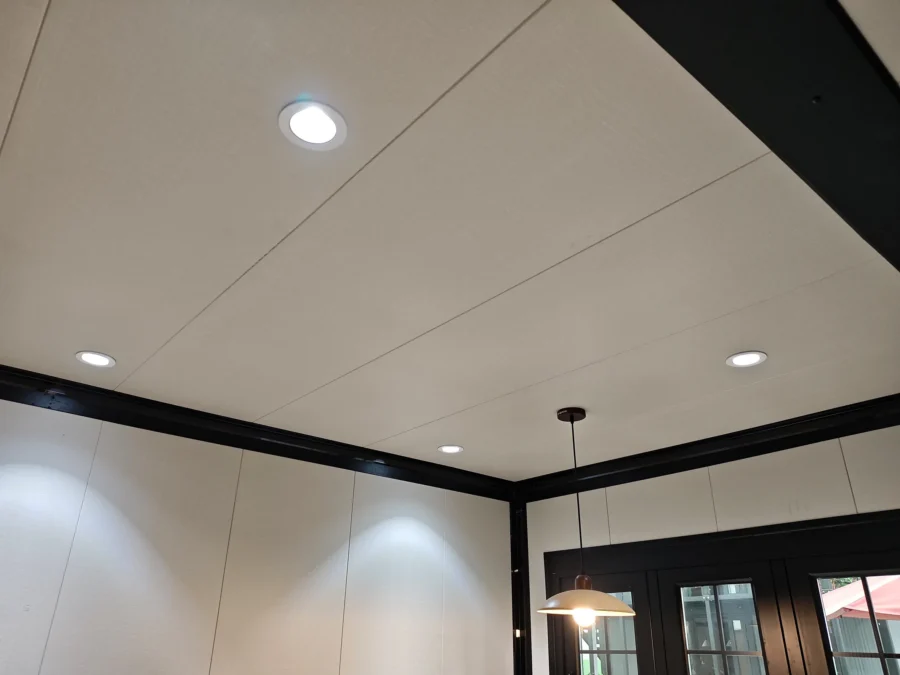

- 1.0 mm steel roof panel + 50/100 mm EPS insulation ceiling
Performance
- Wind resistance
- Grade 10 (240 km/h)
- Thermal insulation
- 50/75 mm EPS; rock wool / PU optional
- Electrical
- CE certified, 12 kW max, copper wiring
- Water / drainage
- DN20 supply, DN50 drainage interface
Installation & Shipping
- Installation time
- 4–6 hours
- Installation team
- 3–4 persons
- Loading quantity
- 4 units / 40HQ
- Gross weight (packed)
- 2700 kg
- Offloading
- Forklift or crane, min. 3 t
[SCOPE OF SUPPLY]
Standard Configuration
Standard supply scope for this model — the final package is confirmed line by line in your quotation.
| Category | Specification |
|---|---|
| Main Structure | Galvanized steel structural frame |
| Expansion System | Factory-fabricated expandable structure with supports, connection hardware and locking components |
| Wall System | Insulated sandwich wall panels |
| Roof System | Insulated roof panels with waterproof joint treatment |
| Floor System | Structural floor system with selected finished flooring |

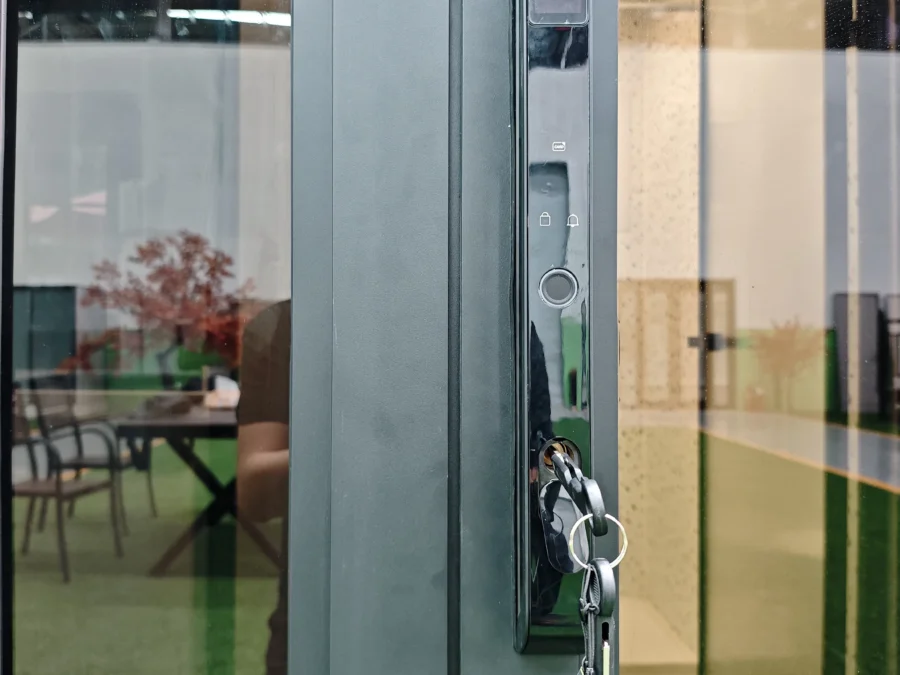

| Doors | Steel entrance door |

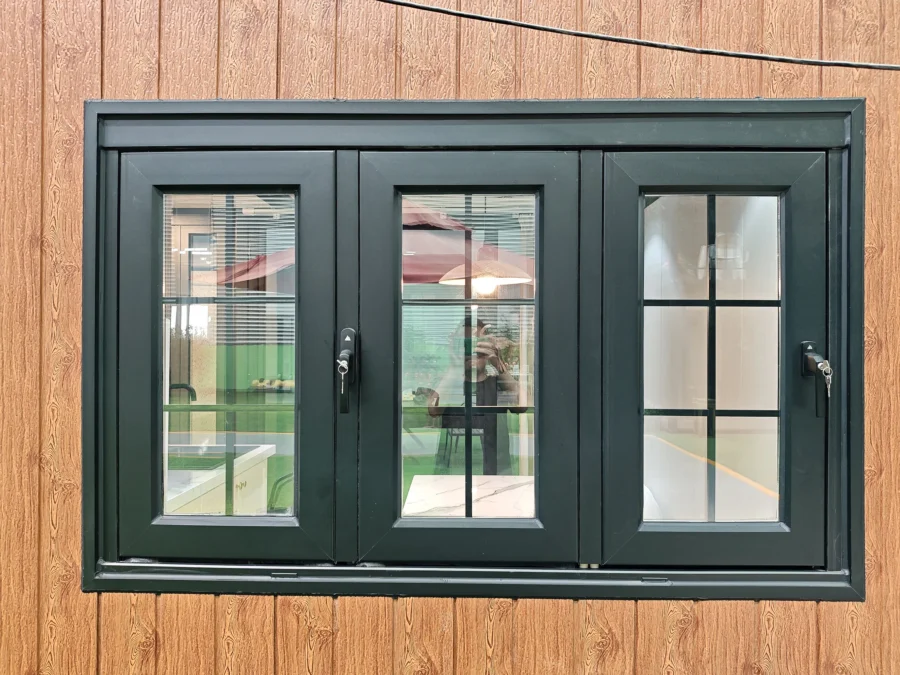

| Windows | Aluminum alloy windows with glass |
| Electrical System | Lighting, switches, sockets, distribution box and internal wiring to the agreed standard |
| Plumbing System | Water supply and drainage pipelines where required by the confirmed layout |

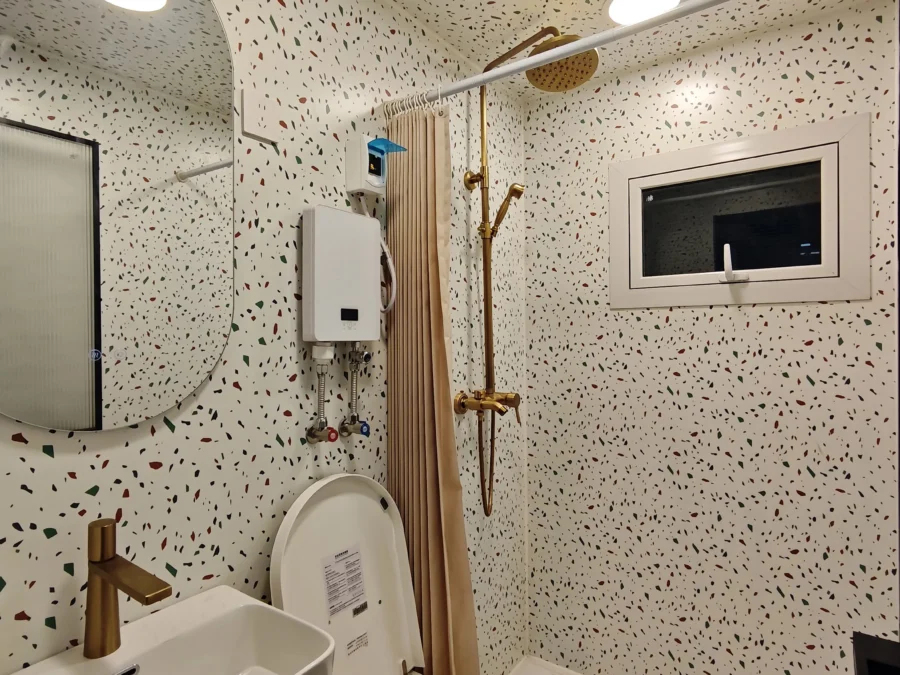

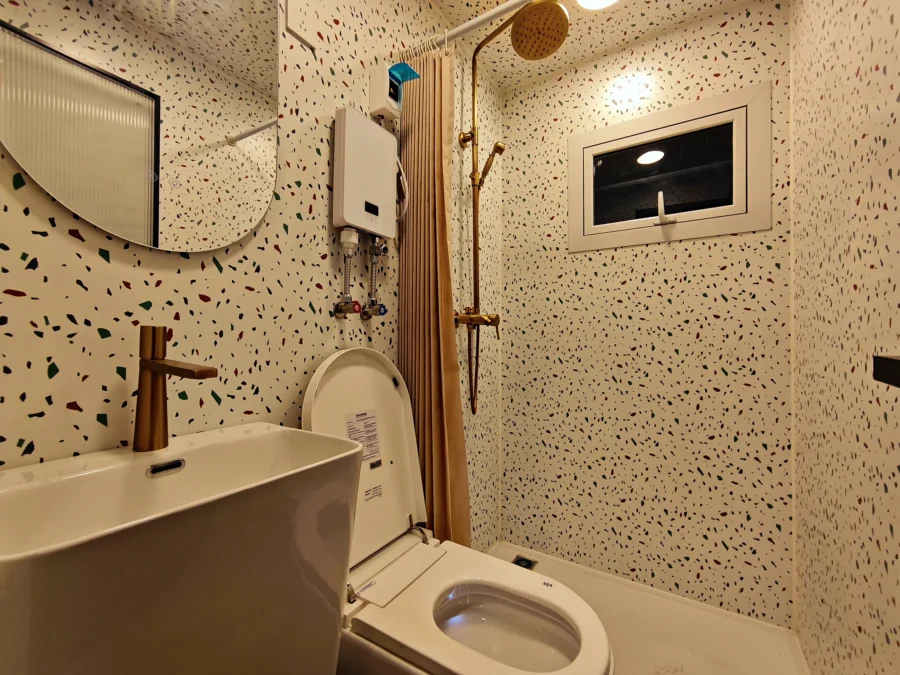

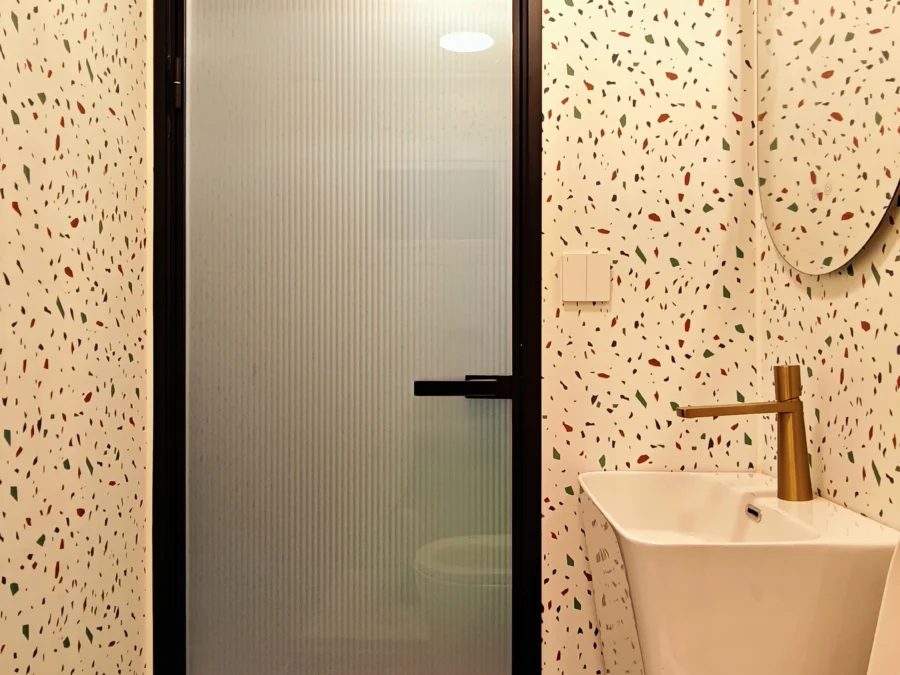

| Bathroom Package | Toilet, wash basin, shower set and basic accessories when included in the selected layout |

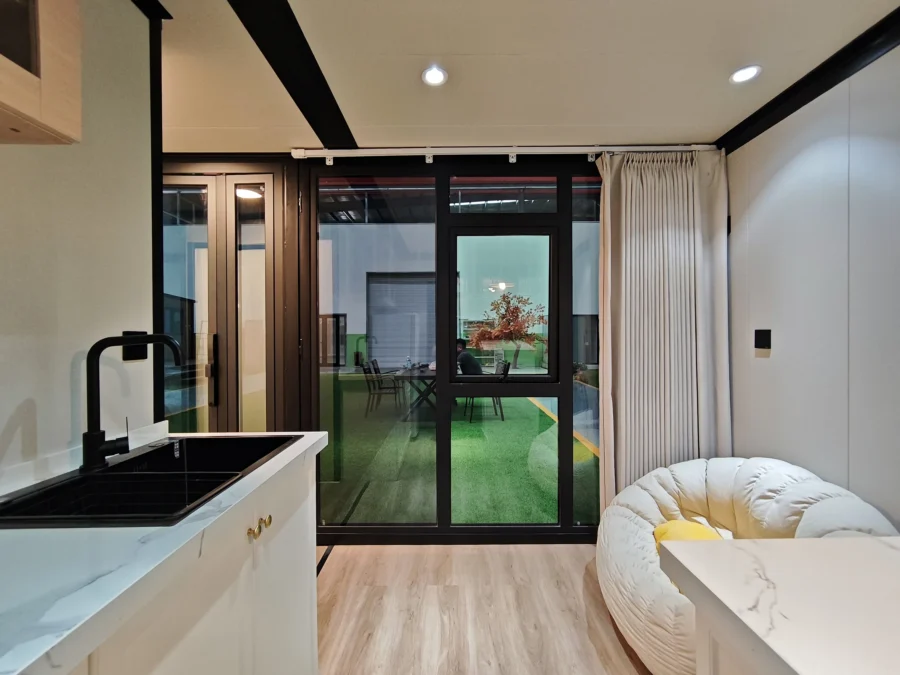

| Kitchen Package | Base kitchen cabinet, countertop and sink when included in the selected layout |
| Interior Finish | Interior wall panels, ceiling finish and decorative trims |
[OPTIONS]
Optional Configuration
Select options according to climate, local standards and the final project layout.
| Category | Specification |
|---|---|

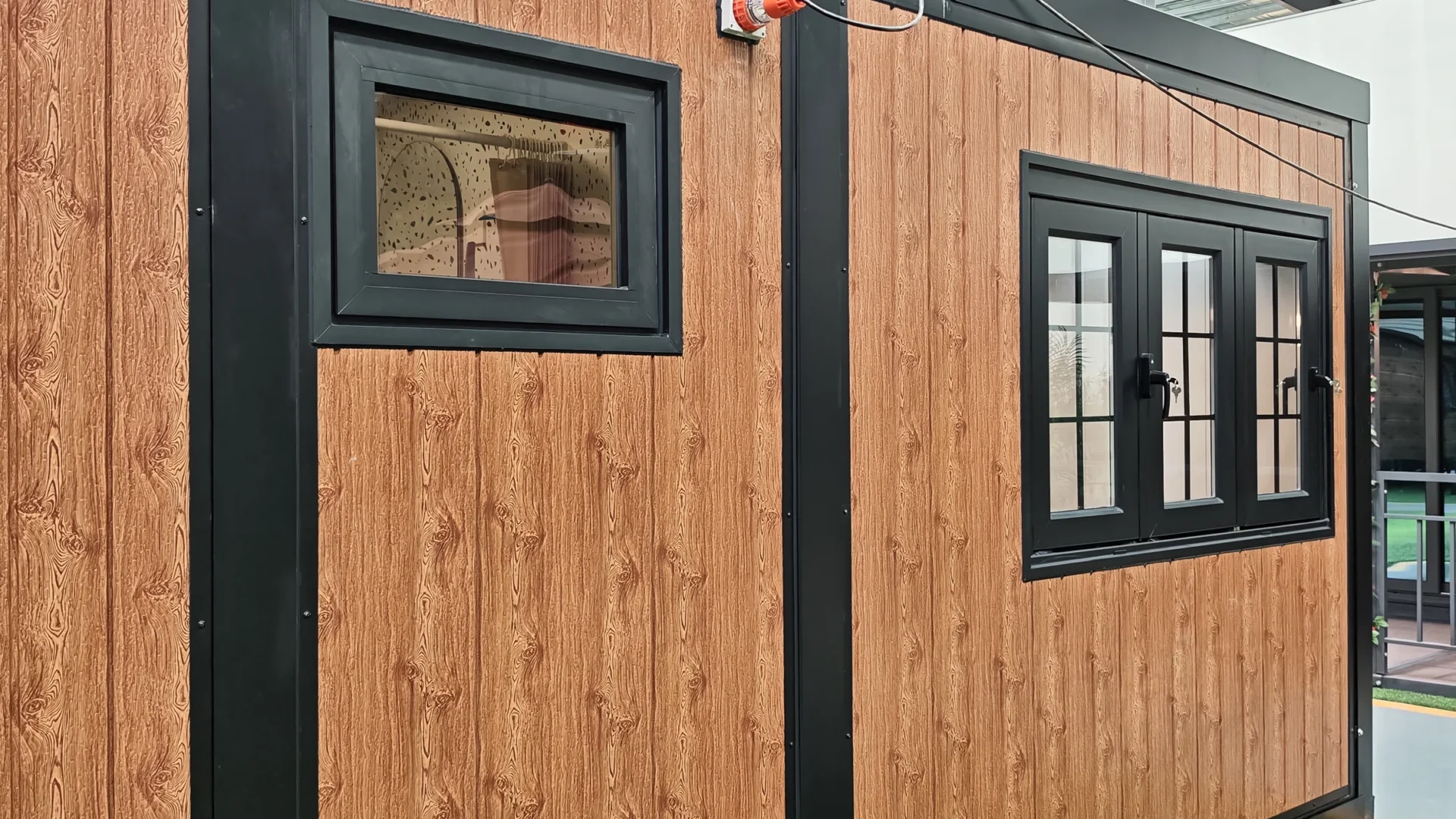

| Exterior Finish | Decorative wall cladding, wood-grain panels and customized exterior colors |
| Insulation | Rock wool, PU insulation or an upgraded thermal insulation package |
| Doors and Windows | Double glazing, insect screens, sliding doors, security doors and customized sizes |
| Interior Flooring | SPC, PVC, laminate or other project-specified flooring |
| Kitchen Upgrade | Full cabinet package, cooker hood, cooktop position and appliance spaces |

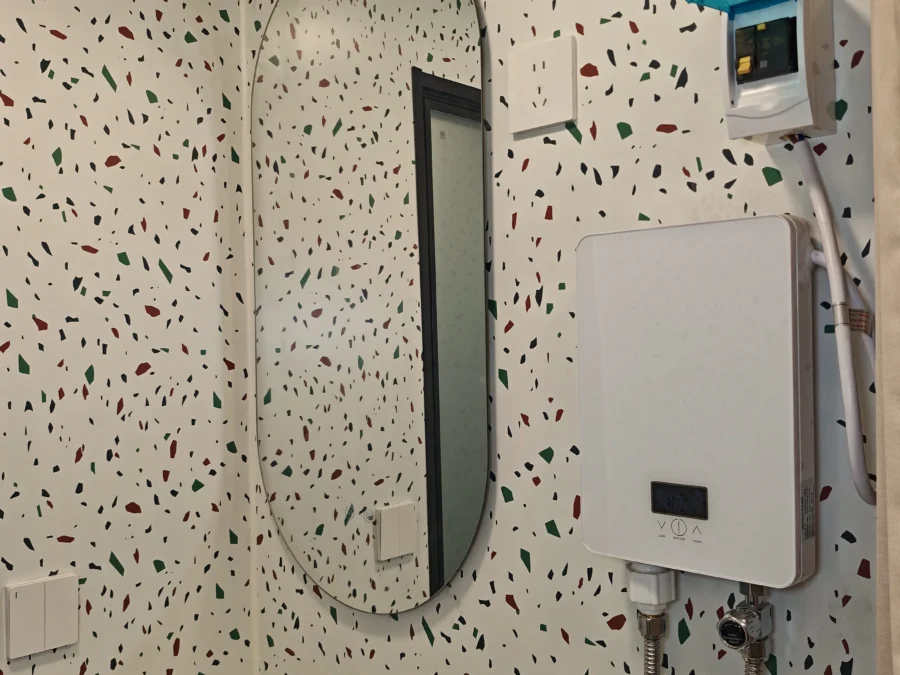

| Bathroom Upgrade | Water heater, mirror cabinet, upgraded sanitary ware and accessories |
| Electrical System | EU, US, UK, AU or other project-specific electrical standards |
| HVAC and Ventilation | Air conditioner, ventilation system and exhaust fans |
| Renewable Energy | Solar panels, inverter, battery storage and associated power components |
| Outdoor Accessories | Terrace, staircase, canopy, handrails and outdoor lighting |
| Furniture Package | Beds, wardrobes, sofa, dining furniture or office furniture |
| Smart and Safety Options | Smart door lock, access control, CCTV, smoke detector and project-specified safety devices |
[ COMPLIANCE ]
Engineered for Local Standards
CE-certified 12kW electrical systems with RCD + MCB protection ship as standard across the range. EU, US, UK and AU wiring packages, rock wool and PU insulation upgrades are available for compliance-driven projects. Component certificates (WaterMark-listed sanitary ware, tempered safety glass and more) are documented on our compliance page.
[ PROCESS ] From Order to
From Order to
Move-In Ready
A flat-packed SunModu unit follows a short, predictable path from confirmed layout to on-site installation — no wet trades, no long tails.
02
Factory Production
Steel framing, panels, interior fit-out, MEP and QC run through our own line — standard models in 15–20 days.
15–20 days
03
Flat-Pack & Containerize
Units are folded, protected and lashed into 40HQ containers with corner guards and film wrapping.
40HQ loading
04
On-Site Installation
A small crew unfolds, levels and connects the unit with basic tools — no crane on most sites.
Hours, not weeks
[FAQ] Common
Common
Questions.
How long does installation take?
A typical 3–4 person crew completes setup in 4–6 hours using the factory-fitted expansion mechanism — no crane required for most sites.
How is it shipped?
Folded flat at 2950 × 2150 × 2480 mm; 4 units load into one 40HQ container with corner protection and film wrapping as standard.
Can I customize the layout and finishes?
Yes. Layouts, exterior colors, insulation (rock wool / PU), flooring, doors, windows and EU / US / AU electrical systems are all configurable before production.
What is the lead time?
Approximately 15–25 days after deposit, depending on quantity and configuration — your quotation confirms the exact slot.
What warranty do you provide?
Structural and finish warranty terms are specified in every quotation and contract, with documentation shipped with each order. Ask our team for the standard warranty sheet.
